Products

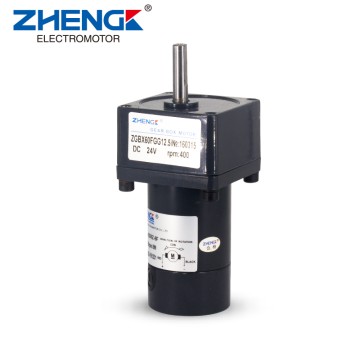

Model: ZGBX60FGG

Gearhead body:60mm

Motor type: ZYTD-45S Brushed Motor

Voltage: 12V~24V

Specifications:

Voltage: 6V

Speed: 0.95 RPM

Current: 1.5A

Reduction Ratio: 6382:1

Torque: 100 N.m

Dimension: 125x60x48mm

Product Features:
1. Suitable for Industrial control systems, fluid control, heating systems, and other automation systems.

2. Equipped with durable metal gears

3. Offers High-precision positioning ensures accurate valve positioning, and reliable operation under continuous use.

Specifications:

Voltage: 12V

Speed: 0.3 RPM

Current: 1.0A

Reduction Ratio: 25935:1

Torque: 200 N·m

Product Features:
1. This valve reduction motor is suitable for applications such as vending machines, valves, instruments, and smart door locks.
2. Featuring an all-metal gear drive, this valve reduction motor offers excellent impact resistance and durability, thereby extending the motor's service life.
3. This valve reduction motor delivers high torque, low operating noise, and a long service life.

Voltage: 3.7V

Speed: 0.635RPM

Current: 140mA

Torque: 50N.m

Reduction Ratio: 7091:1

Dimension: 106x60x48mm

Product Features:

The motor incorporates built-in overheat protection to prevent burnout, enhancing the intrinsic safety and reliability of the equipment.

Utilizing optimized electromagnetic design and high-performance materials, the motor significantly reduces operational power consumption, making it particularly suitable for automated equipment requiring continuous, uninterrupted operation.

Featuring an integrated design with a compact structure, the motor is equipped with standardized mounting interfaces and output shafts.

Model: ZGB25RP

Body Diameter: 25mm

Gearbox type：Spur Gearbox

Motor type: PMDC Brushed motor

Voltage: 6V~24V

Output Power: 0.5~2W

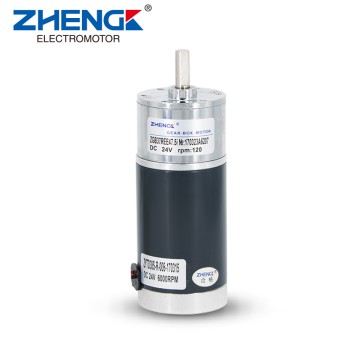

Diameter 37mm DC gear motor, Model: ZGB37RG Eccentric Shaft 6V~24VDC Power: 5Watt Speed: 1rpm~1000rpm Sleeve bearing This 37mm metal geared motor is most economy motor for many applications like vending machine, baby swings, etc.
DC gear motors are available at different speeds, ranging from 600 - 1200 RPM for low-speed versions to 8200 RPM for high-speed versions. High-speed versions of these motors are used in applications where high speeds are required, such as paper feeders and conveyor belts. Low-speed models are normally used for applications that require more torque than speed, such as pumps or blowers.

This is a DC Mini Metal Gear Motor, which is ideal for making robots.
Lightweight, high torque, and low RPM.
Fine craftsmanship, durable, not easy to wear.
With excellent stall characteristics, you can climb hills easily.
You can also easily mount a wheel on the motor's output shaft.
Specification:
Rated Voltage: DC 12V
Speed: Customizable speed
Shaft Diameter: 3mm
Size: Diameter: 12 mm
fuselage without shaft length: 26 mm
Output axial length: 10mm
Name: DC Mini Metal Gear Motor.
Voltage range: 6-12V

Model: ZGX38REE

Gearhead Diameter:38mm

Gearhead type: Planetary Gearhead

Ball Bearing

Motor type: ZYTD-38SRZ

Voltage: 12V~24VDC

Output Power:5~15W

Model: 50KTYZ, Motor Body Diameter: 50mm, Motor type: AC Synchronous Motor, Eccentric Shaft, Gearbox integrated, Voltage: 24VAC/110VAC/220VAC, Frequency: 50/60Hz, Rotating direction: CW/CCW, Applications: Egg incubators,Monitor pan/tilt, Dishwasher, electric machinery, heating and cooling valves, automatic instrumentation, electric models, electric advertisements, Projector screen, plastic machines, barbecue equipment, electric subpoena devices and all low-power and low-speed operation equipment.
Speed: When the synchronous speed requirement is high, a synchronous motor with large phase current and small inductance should be selected to increase the input power. When selecting a driver, a higher power supply voltage should be used.

Model: ZGB37RE

Gearhead Diameter: 37mm

Gearhead type: Spur Metal Gearhead

Motor type: 380 DC Brushed Motor

Voltage: 6V~24V

Eccentric Shaft

Output Power: 3W

Model: ZGB800

Color: Black

Input Volatge：12V/24V/36V/48V DC
Minimum Mounting Distance：S+100mm 标准Standard
Limit Switches：Internal pre installed.

Operating Temperature：-10~40℃
IP Grade：IP54
Operating Frequency：S2-10min

Model: ZGB42FEE

Gearbox Diameter:42mm

Gearbox type: Spur Metal Gearbox

Motor type: PMDC Brushed Motor ZYTD-38S Series

Voltage: 12V~24VDC

Eccentric Shaft

Output Power: 5W~10W
